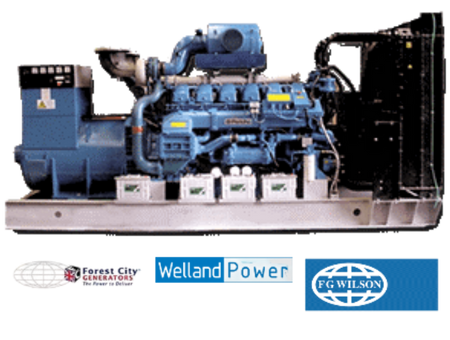

Generators
- Brand / Origin: Forest City / WellandPower / FG Wilson – UK
- 20kVA – 2000 kVA
- Frequency 50Hz
- Automatic Microcontroller based + manual Start / Stop System
- Emergency Stop available as protection device
- Built-in vibration skid for smooth operation
- Auto Battery Charger (ABC) included
- Synchronization: available
ENGINE:
- Brand / Origin: Perkins – UK / VOLVO PENTA – Sweden / MTU – Germany
- Speed: 1500 RPM Induction
- Induction System: Turbocharged
- Engine Type: 4 stroke multi cylinder industrial diesel Engine suitable for tropical environment
- Cooling System: Water cooled (Radiator cooled with engine driven fan)
- Protection: Over speed, under speed, oil pressure, over heating etc.
- Fuel Tank: Built in with base
ALTERNATOR:
- Brand / Origin: Stamford / Mecc Alte / Leroy Somer – UK
- Industrial brushless AC Alternator
- Phase: 3 Phase Output (Volts): 400/415 volts (Line to line)
- Cooling: Air cooling
- Insulation Type: Class “H”
- Protection: Industrial brushless design screen protected, fan ventilated, drip-proof, self exciting in accordance with IP23
- Voltage Regulator: Automatic Voltage Regulator (AVR)
- Voltage Regulation: ± 1% / ± 1.5% power factor between 0.8 lagging & unity
CONTROL MODULE:
- Brand / Origin: Deep Sea – UK
- Auto start (AMF) digital control module
- Operation via push buttons on front panel with STOP, AUTO and MANUAL positions
- Digital Instruments: Ammeter, Voltmeter, Frequency meter, Run-hour meter, Oil Pressure, Water Temperature
- Alarm Indicator: Under/Over volts, Under/over speed, Under/Over Frequency, Low Oil Pressure, High Engine Temperature, Fail to start and Loss of speed sensing etc.
- Load Transfer Time: Adjustable, Delay on start 1-25 sec, Delay on transfer 1-70 sec
- Engine Cooling Time: 5 minutes maximum
- Phase Failure Relay: Digital option and control for Main’s upper lower cut off voltage setting and adjustable hysteresis voltage, sensing option etc.

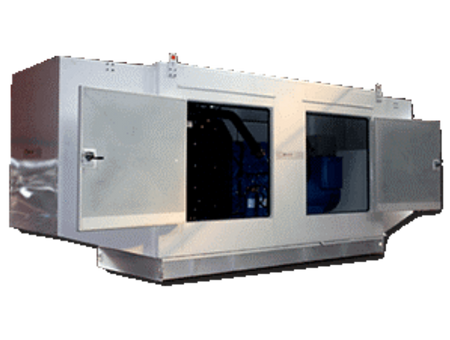

ACOUSTIC CANOPY
- Origin: Foreign/Local built – Acoustic Enclosure & Weather Proof
- Reducing Sound levels to 75 dBA @ 3 meter in open space
- Air inlet and outlet options at alternator and radiator ends
- Hinged access doors on either side with locking option
- Silencer
- Cable entry gland apertures
AUTO TRANSFER SWITCH – ATS
- Origin: Foreign/Local built
- Supplied in suitable steel enclosure, wall mounted, fuses, magnetic contactor coil, indicators etc.
- Interlocking: Electrical + mechanical
- Magnetic Contactor / Motorized switch: 3 Pole
- Brand of Magnetic Contactor: ABB or Equivalent
- Auto Voltage Stabilizer (AVS): for protection of coil of magnetic contactor of ATS
- Paint: Powder coated
GAS GENERATORS
- Please contact our office.
WARRANTY
- We provide manufacturer’s warranty of: 1500 hours or 1 year whichever comes first – effective from date of delivery at client’s site. Warranty policy covers: any manufacturing defects or any premature wear & tear due to usage. Faulty part(s) is/are replaced/repaired within warranty period. Warranty does not cover: improper maintenance by the user, consumable items, servicing by unauthorized person, running the genset above it’s capacity or any unauthorized modification of the genset.
INSTALLATION & COMMISSIONING
- Includes Carrying, Loading, Unloading, Installation & Commissioning provided genset is installed in Basement or at Ground Floor level within Dhaka City. Not included are cost of commissioning materials, such as: Power/Control Cable, Civil works, Ducting, Manual labor, Silencer pipe Extension Work, Lube Oil, Coolant & any other materials that may be necessary for installation of genset.
SPARE PARTS + AFTER SALES SERVICE + AMC
- Sufficient stock of spare parts is maintained to meet regular demands of our valued clients. After 12 months warranty period, we extend our support for servicing of gensets at a reasonable charge by entering into an Annual Maintenance Contract (AMC) with our customers. On-call service is available 24/7 to attend to any types of emergencies.
